D15u Clay Pantile

The D15u clay pantile is a beautiful new double–interlocking clay tile that when fitted has the appearance of a traditional pantile. It is available in an attractive range of colours and finishes.

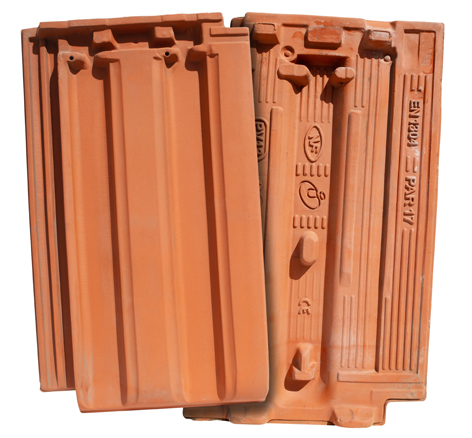

The D15u tile has side and upper interlocking which allows the roof to be extremely watertight ensuring its impermeability. Its traditional shape and its installation by cross bond allow a great adaptation to restoration projects. The graceful interplay of lines is also appreciated in contemporary new buildings.

Range of Colours

The D15u are available in an attractive range of colours and finishes with a comprehensive range of fittings.

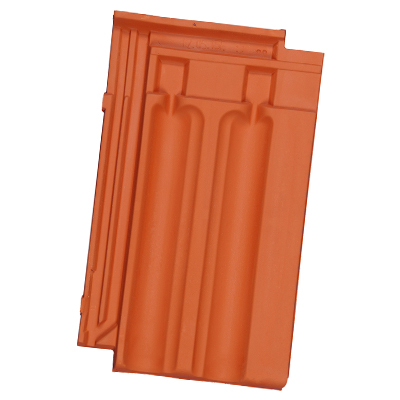

D15u Natural Red 115
D15u Natural Red 115

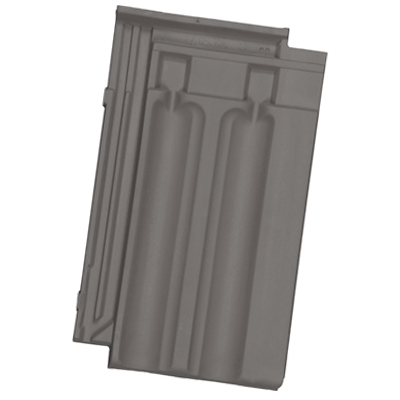

D15u Blue Reduced 144
D15u Blue Reduced 144

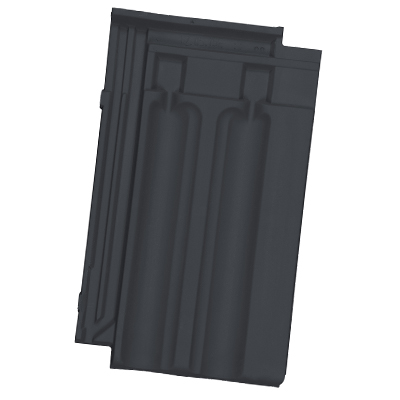

D15u Matt Black Engobe
D15u Matt Black Engobe

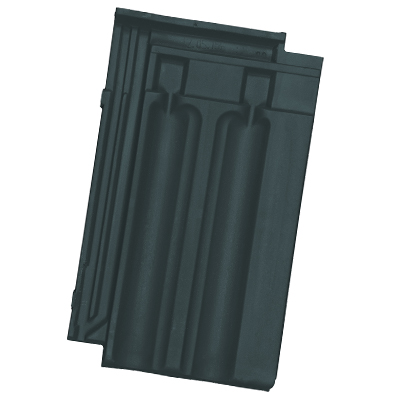

D15u Black Engobe 119
D15u Black Engobe 119

Features

  • High-quality clay
  • Long Term Durability
  • Eco-friendly
  • Low maintenance Quick, easy & secure installation

Technical Data

Length – 420mm
Width – 252mm

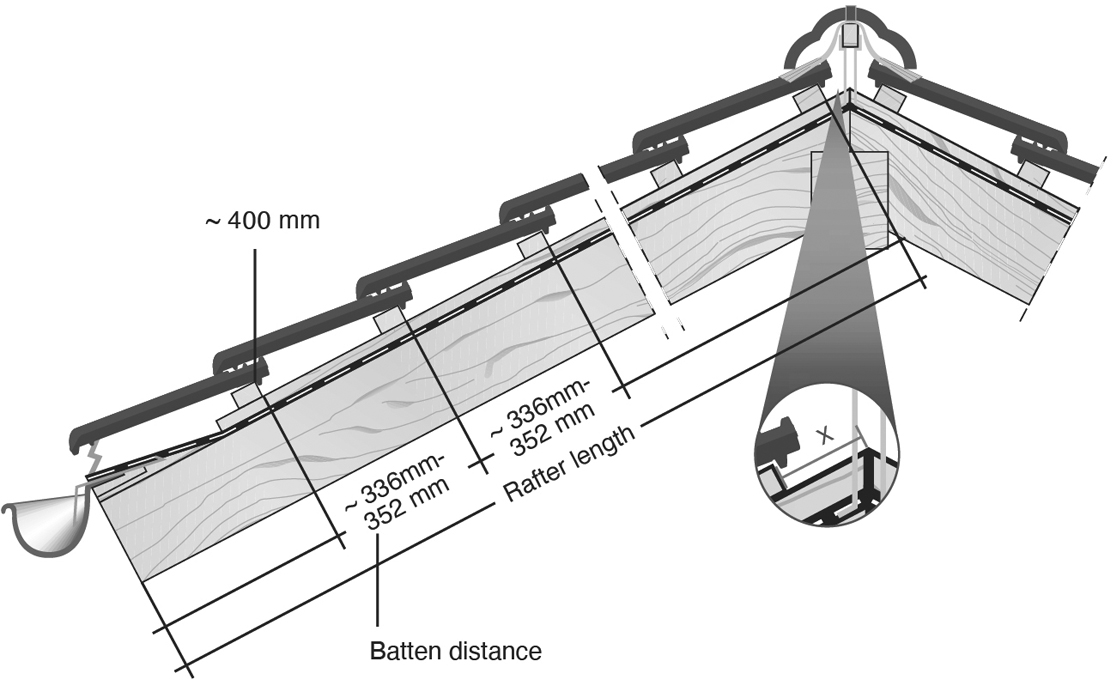

Gauge – 336mm up to 352mm
Covering width – 208mm. ± 1.0mm
Quantity per m2 – 13.7 - 14.4pcs
Unit weight – 3.1kg
Weight per m2 – min. 42.47kg
Roof pitch – 30° and with adjustment up to 15°
Tile Clips (FOS stainless steel) – 435/013 22 x 38 - 435/074 24 x 48
Nail Tile Hook/Clip – 409/002

Downloads

For further information, data cards, CAD drawings, downloads and tile samples please click the Crest link below.
Please note: D15u information downloads are currently unavailable, although should be available soon. Alternatively contact us for more information.
