H15 Clay Pantile

H15 clay pantile is a beautiful new double interlocking clay tile that when fitted has the appearance of a traditional pantile.

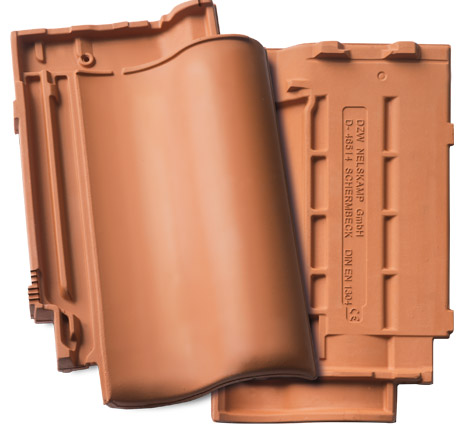

It's a superbly engineered tile with excellent interlocking channels that are designed for easier and faster installation. The H15 also has a double nib, ensuring greater stability and more secure fixing.

It's yet another example from our clay tile portfolio that is proving to be an inspired choice when used with both modern and traditional styles of architecture as well as renovation projects.

Range of Colours

H-15 is suitable for roof pitches down to 15º and is available in five striking colours and has an open gauge - making it easy to lay.

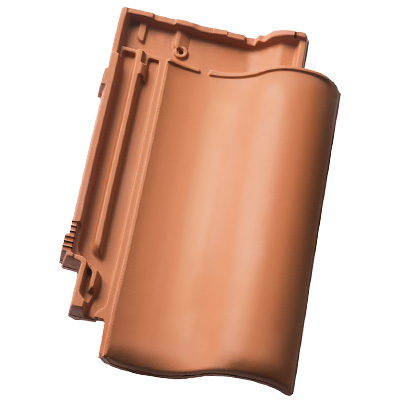

H15 NATURAL RED
H15 NATURAL RED

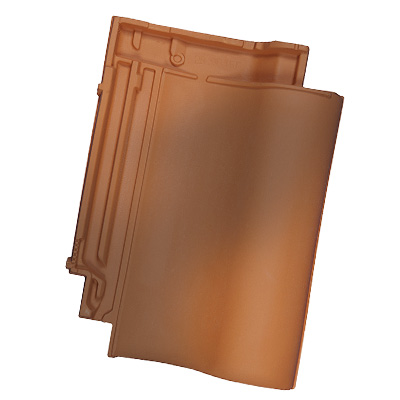

H15 TOSCANA
H15 TOSCANA

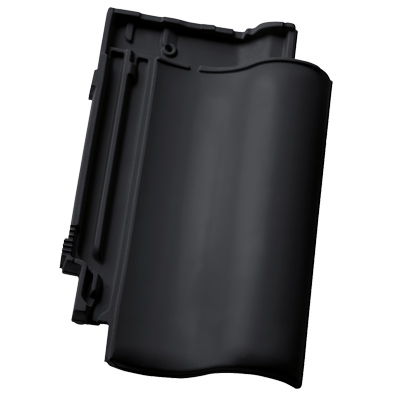

H15 HERITAGE BLACK
H15 HERITAGE BLACK
H15 MATT BLACK
H15 MATT BLACK

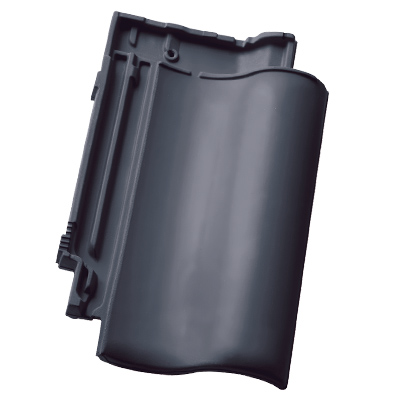

H15 BLUE REDUCED
H15 BLUE REDUCED

Features

  • Economical high-quality clay tile
  • Minimum roof pitch 15°
  • Long term durability
  • Quick, easy & secure installation
  • Wide range of fittings

Technical Data

Length ~ 410 mm.
Width ~ 260 mm.

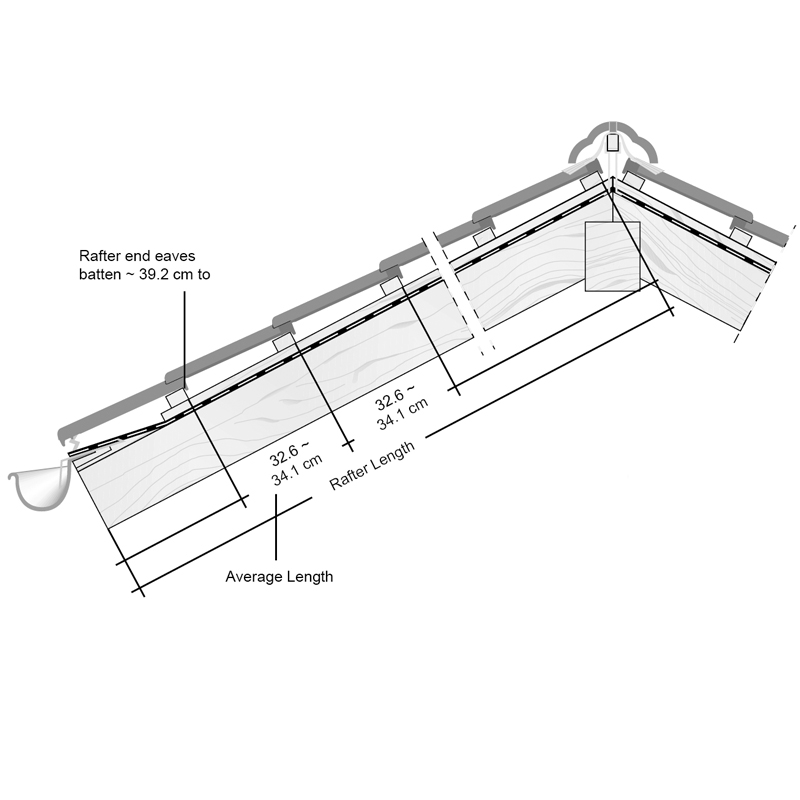

Gauge ~ 322 mm ~ 342 mm.
Covering Width ~ 200 mm ± 2.0 mm.
*Minimum roof pitch ~ 15º
Number of tiles per m2 ~ 14.6.
Weight per tile ~ 3.2 kg.
Weight per m2 (min.) ~ 46.72 kg.
Battens required per per m2 (min) ~ 2.9
Batten size (mm) ~ 50 x 25
All tiles must be fixed
(Contact Crest for FOC-specific BS 5534 fixing specification)
*For low pitch roof advice and recommendations please visit our website

Downloads

For further information, data cards, CAD drawings, downloads and tile samples please click the Crest link below.

https://crest-bst.co.uk
