SP10 Clay Tile

SP10 is a modern technically advanced version of a traditional ‘Courtrai’ style roofing tile.
The SP10 is essentially a single Roman clay tile, the SP10 has a flat pan with a subtle single roll. With its carefully designed relief to the right side of the flat surface area, the SP10 delivers a faithful representation of this traditional profile.

The interlocking tile is brilliantly engineered by Schermbecker for superior technical performance and with just 10.7 tiles per square metre, the installation is much quicker, more economical and ensures a great finish to the completed roof.
It offers a great choice for refurbishment, heritage or conservation area projects or if you are simply looking for something a little more distinctive for new build developments.

Range of Colours

The SP10 is available in an attractive range of colours and finishes with a comprehensive range of fittings.

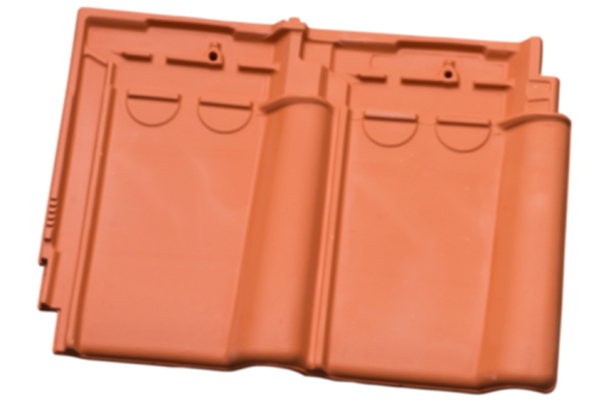

SP10 NATURAL RED (115)
SP10 NATURAL RED (115)

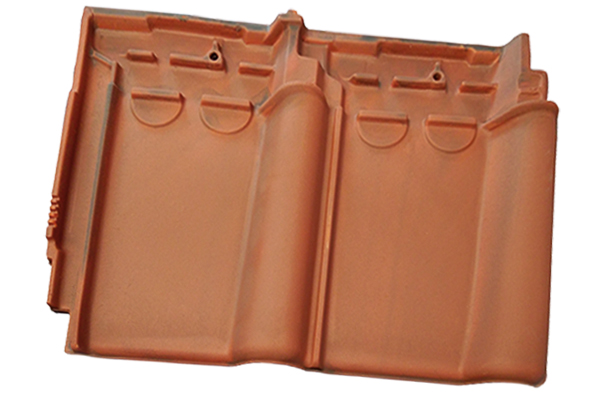

SP10 TOSCANA (152)
SP10 TOSCANA (152)
SP10 BLUE REDUCED 144
SP10 BLUE REDUCED 144

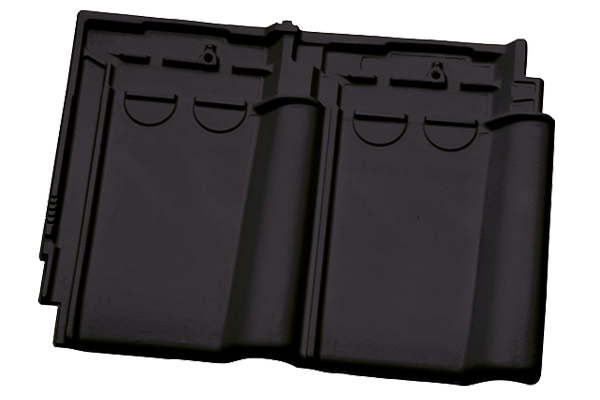

SP10 MATT BLACK (133)
SP10 MATT BLACK (133)

Features

  • Economical
  • High-quality clay
  • Long Term Durability
  • Eco-friendly
  • Low maintenance
  • Quick, easy & secure installation

Technical Data

Length ~ 300 mm.
Width ~ 417 mm.

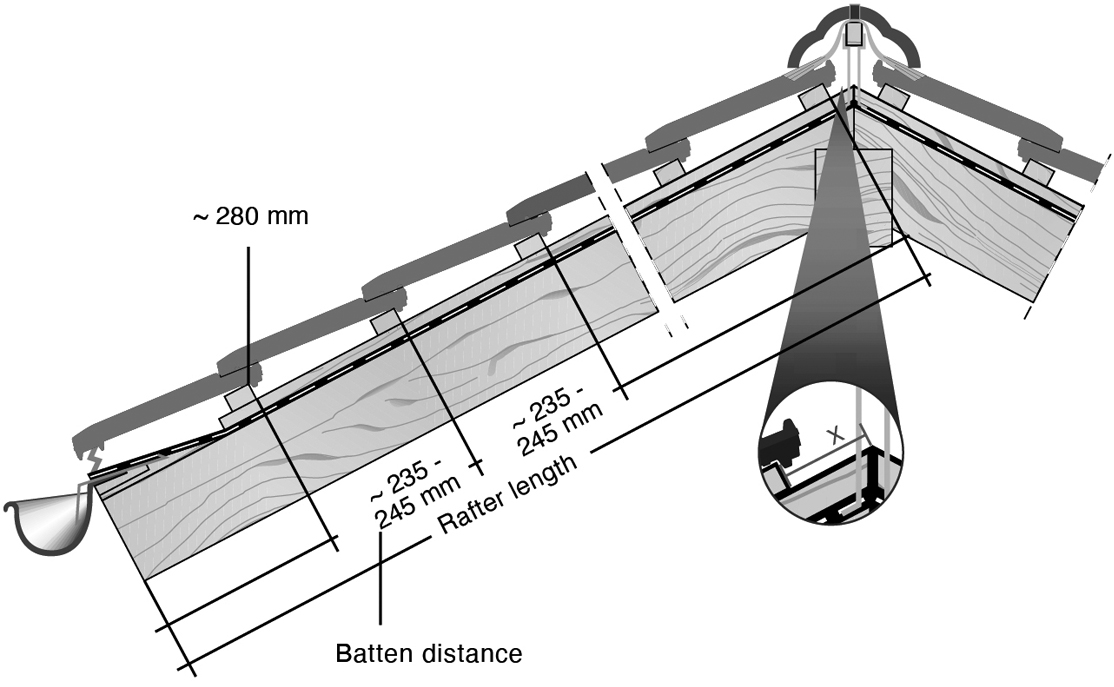

Gauge ~ 235mm to 245 mm.
Covering Width ~ 390 mm ± 2.0 mm.
Minimum roof pitch ~ 22.5º
Number of tiles per m2 ~ 10.5 to 10.9
Weight per tile ~ 3.04kg.
Weight per m2 (min.) ~ 32.5kg.
Battens per m2 (min) ~ 4.2
Batten size (mm) ~ 50 x 25
Fixing (nail holes included) ~ Nail or Clipped

Downloads

For further information, data cards, CAD drawings, downloads and tile samples please click the Crest link below.
