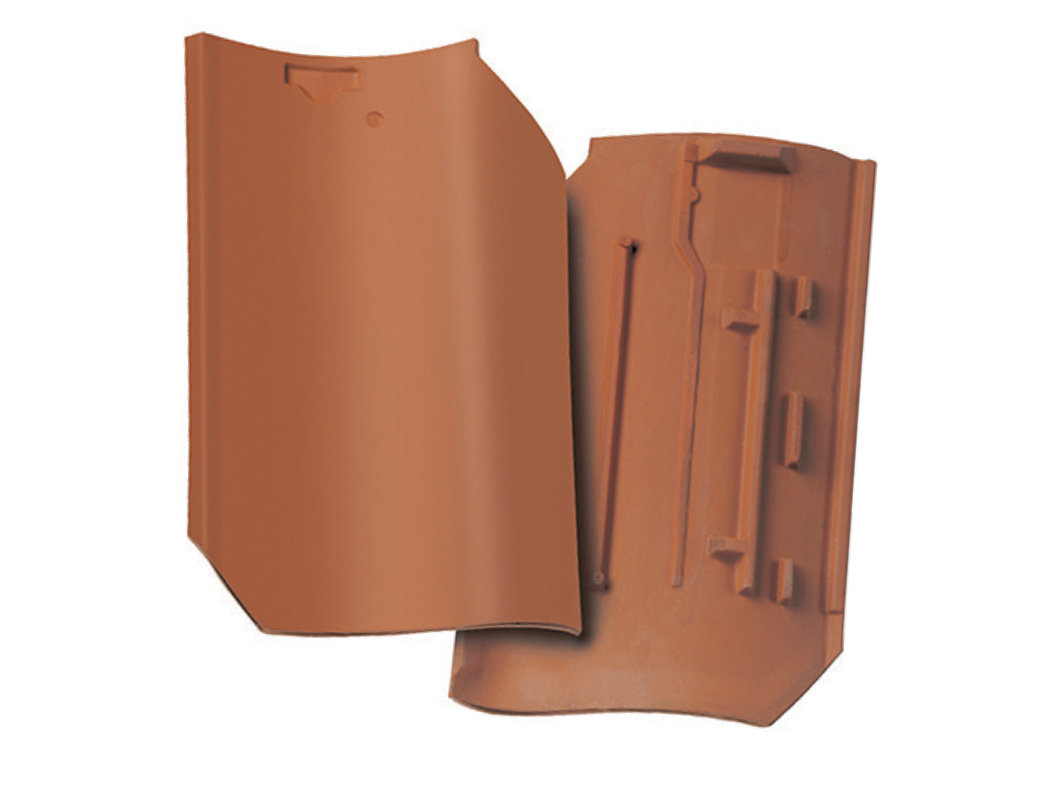

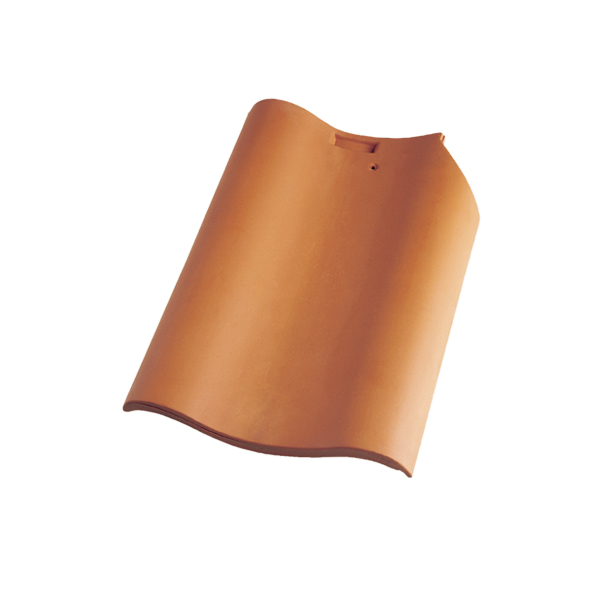

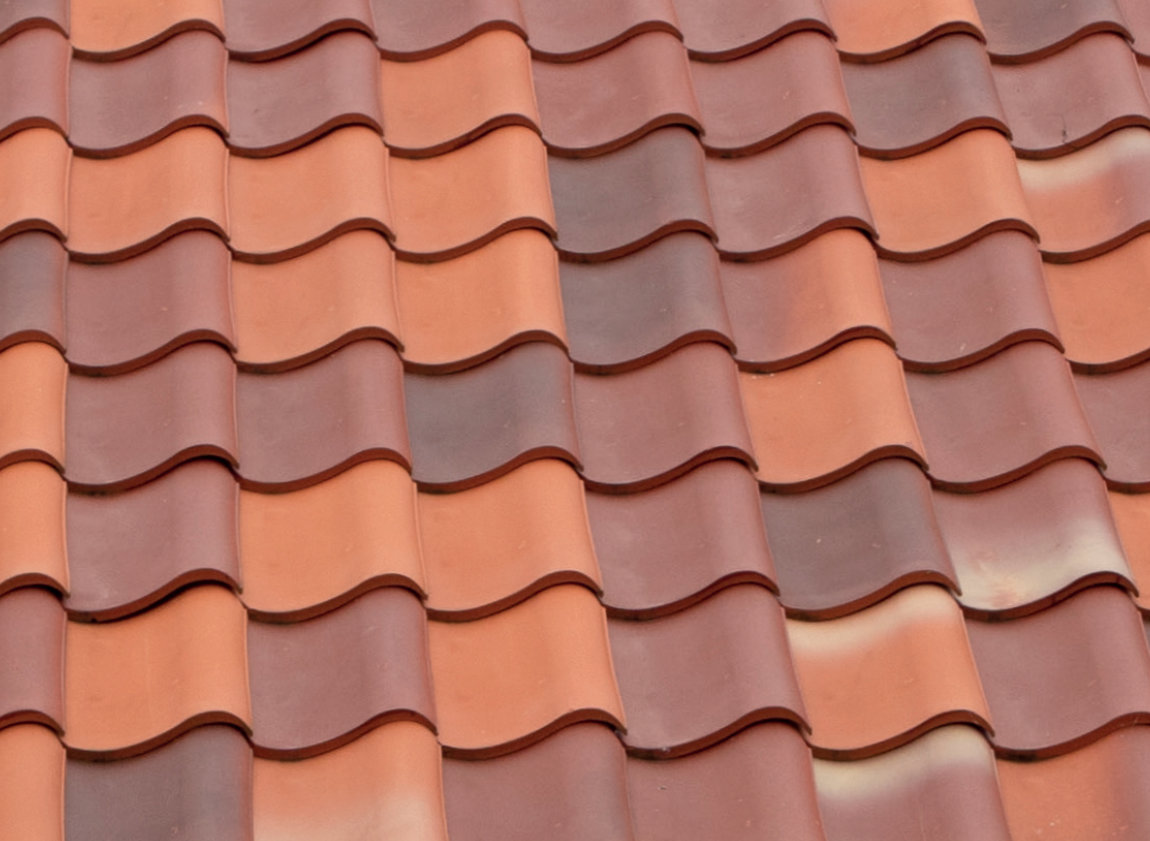

Wolds Clay Pantile

The most modern technologies in production facilities ensure that this profile is precise in its shape thus enabling the roofers to provide a very high quality finish to the roof. With a covering capacity of only 16 tiles per square metre, this also makes it a very economical pantile.

The Wolds pantile is yet another example from our clay tile portfolio that are proving to be an inspired choice especially when used with traditional styles of architecture as well as renovation works.

Range of Colours

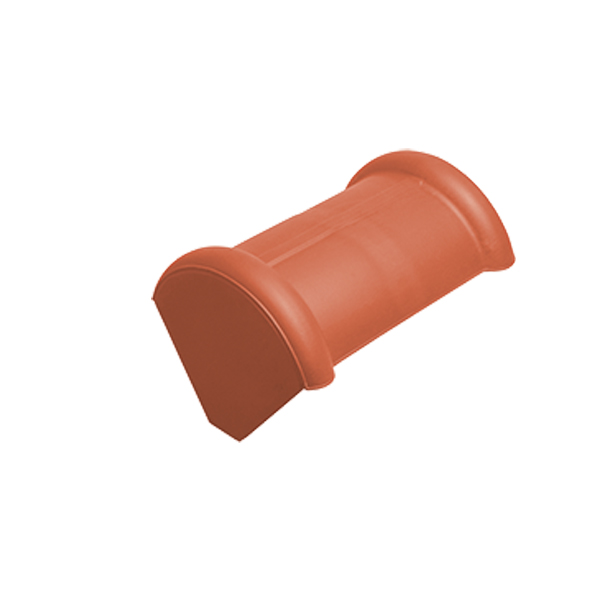

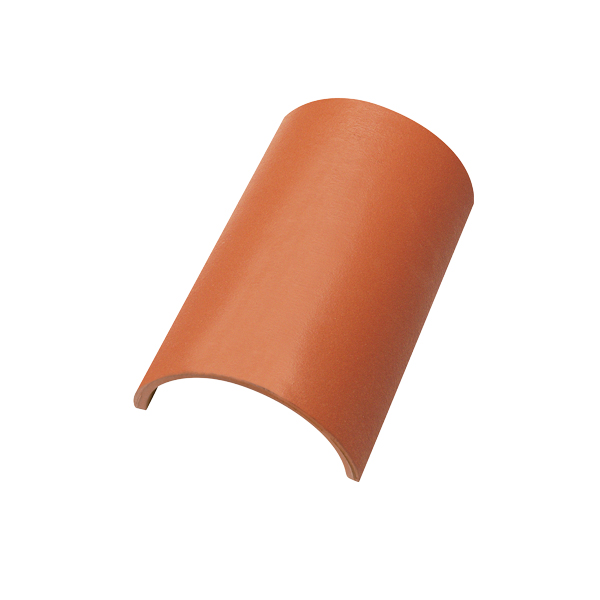

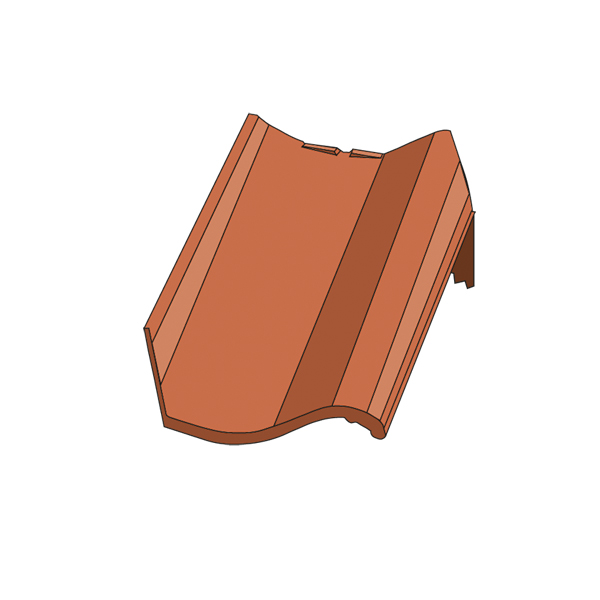

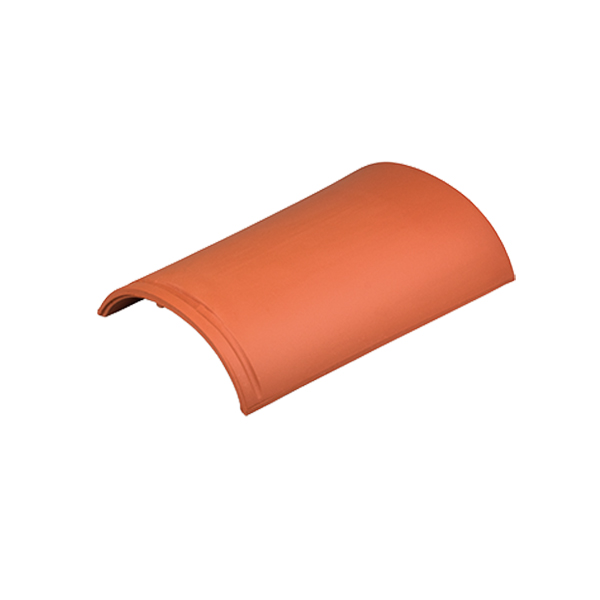

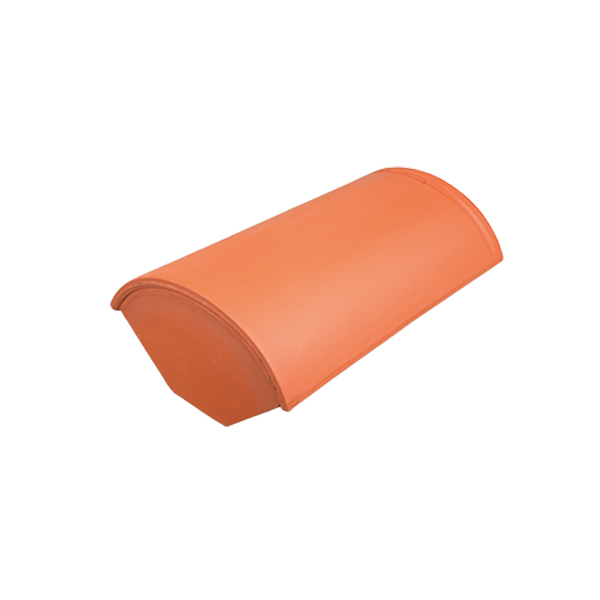

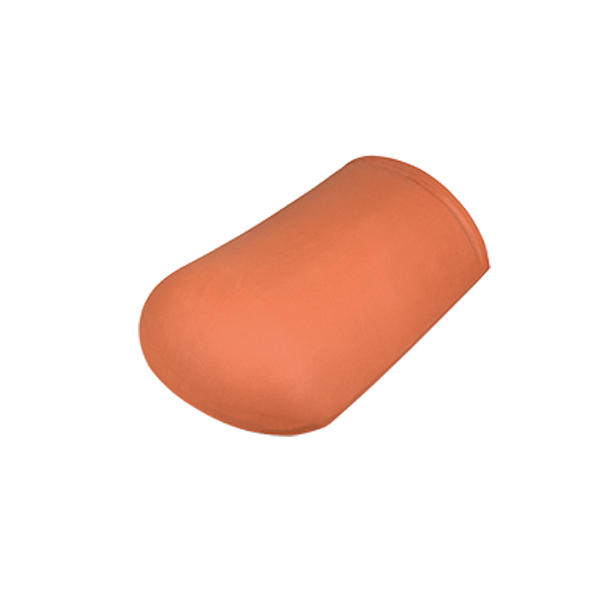

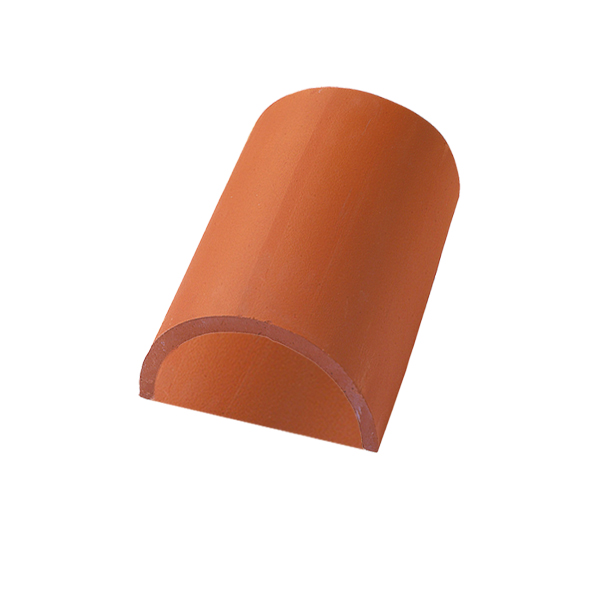

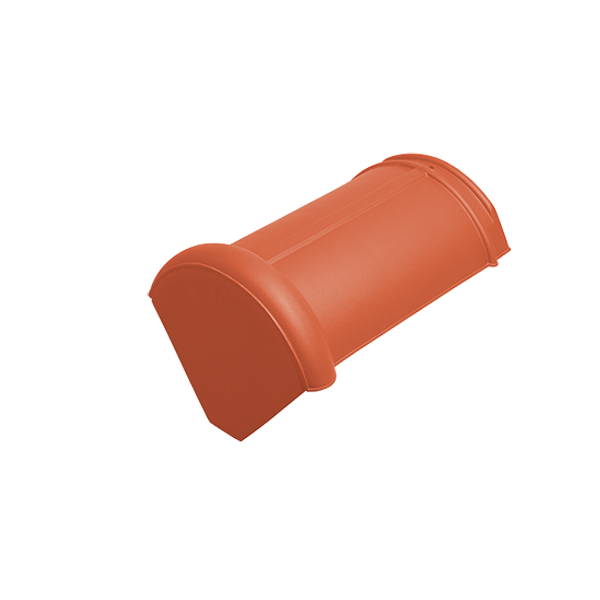

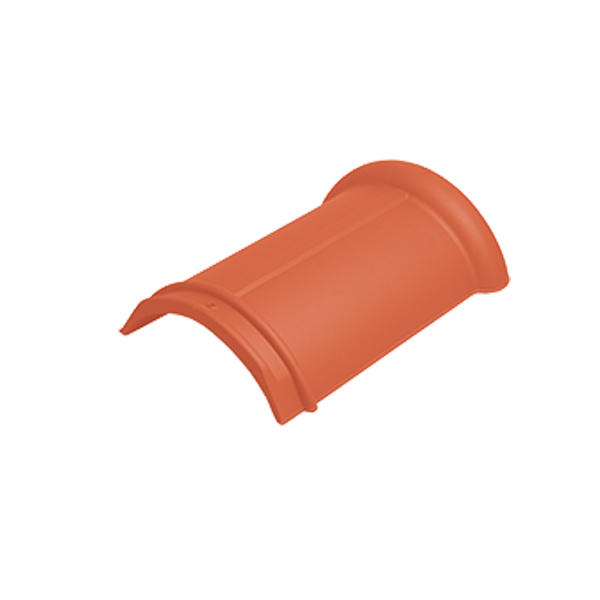

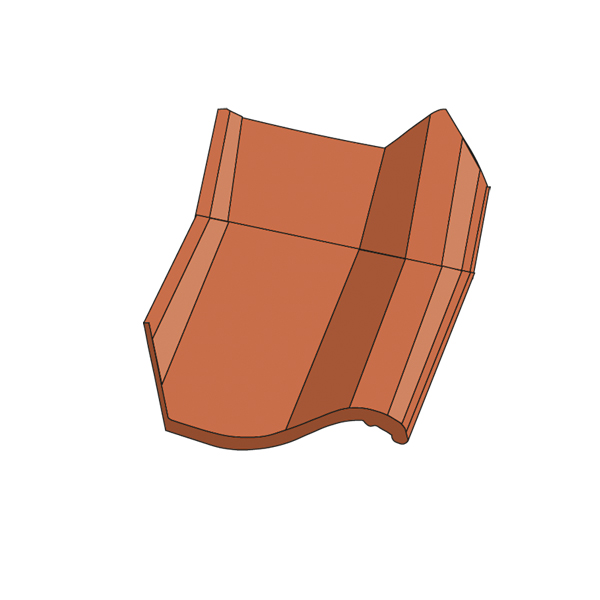

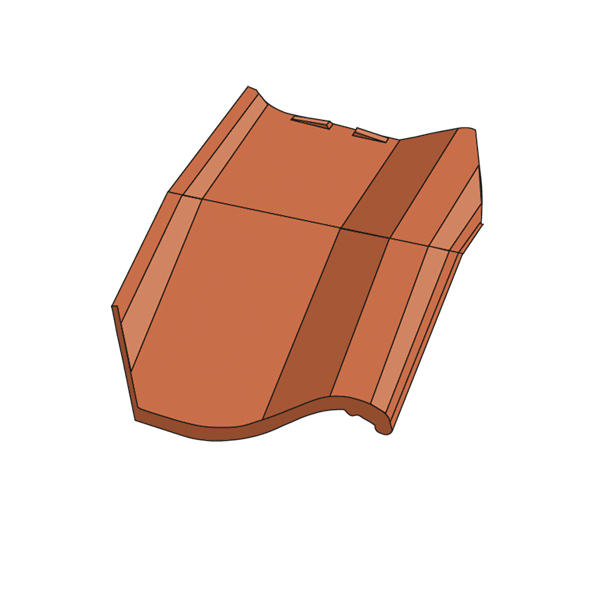

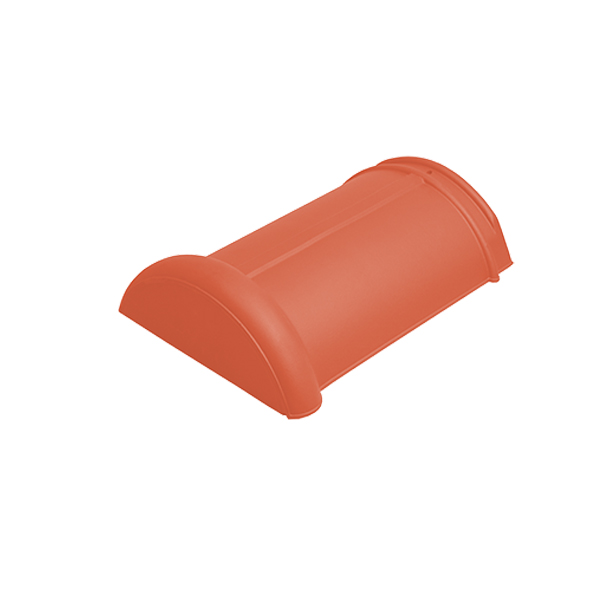

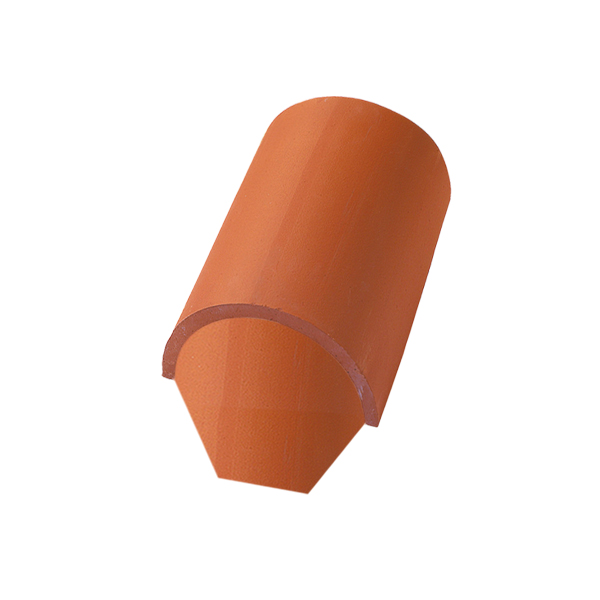

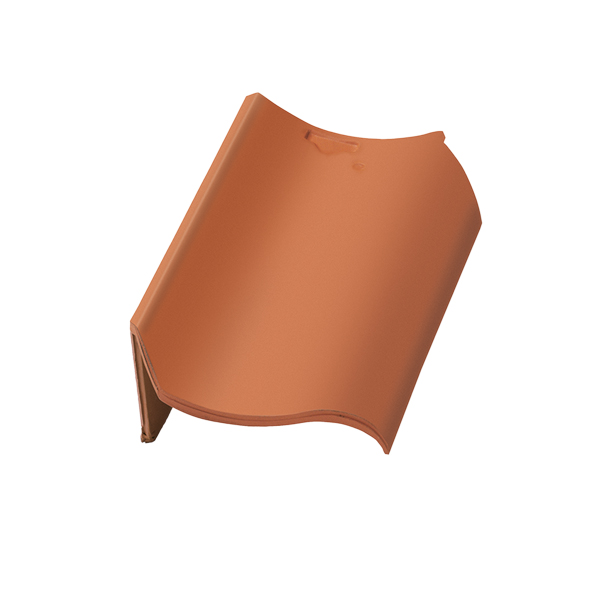

The wolds are available in an attractive range of colours and finishes with a comprehensive range of fittings including double roll and cloaked verge tiles.

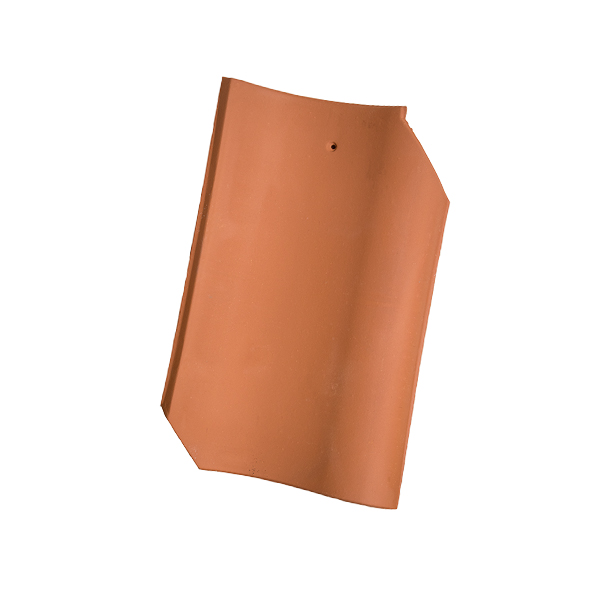

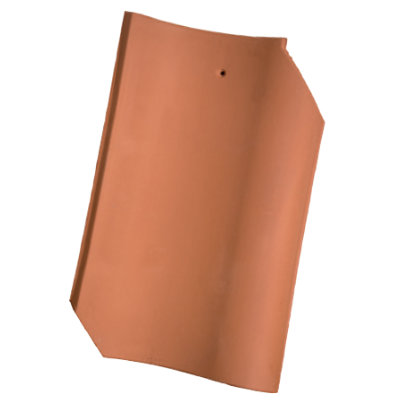

WOLDS NATURAL RED (115)
WOLDS NATURAL RED (115)

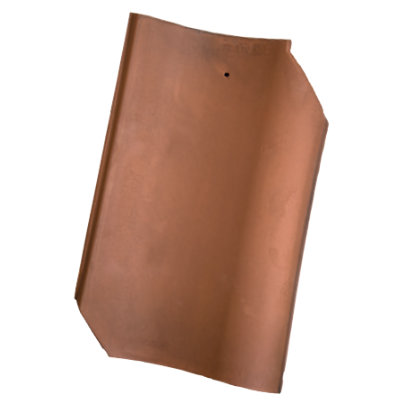

WOLDS TOSCANA (152)
WOLDS TOSCANA (152)

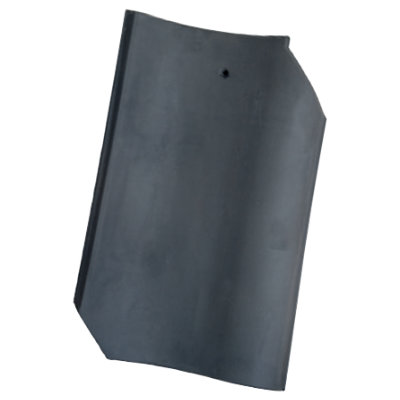

WOLDS BLUE REDUCED (153)
WOLDS BLUE REDUCED (153)

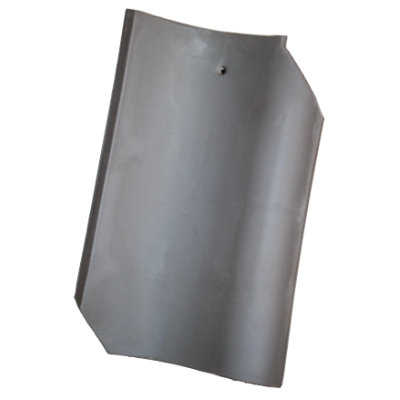

WOLDS SLATE GREY ENGOBE (119)
WOLDS SLATE GREY ENGOBE (119)

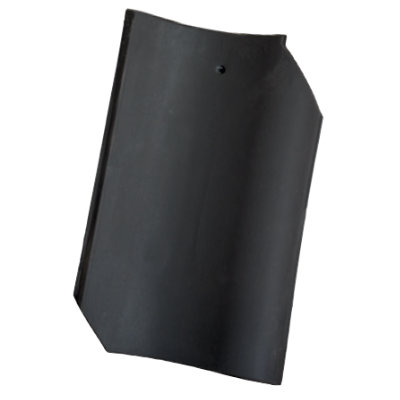

WOLDS MATT BLACK ENGOBE (133)
WOLDS MATT BLACK ENGOBE (133)

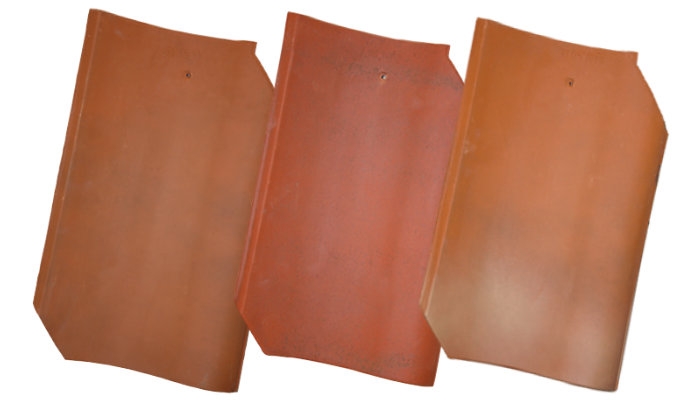

WOLDS CLASSIC (143)
WOLDS CLASSIC (143)
'Classic is a mix of different colours & finishes'

Features

  • Economical high-quality clay tile
  • Minimum roof pitch 30°
  • Long term durability
  • Quick, easy & secure installation
  • Wide range of fittings

Technical Data

Length ~ 393 mm
Width ~ 245 mm

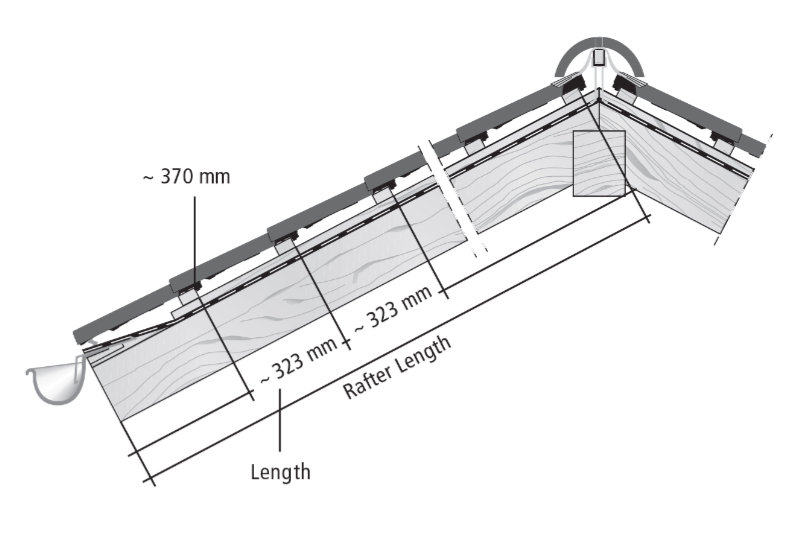

Gauge ~ 321.5 mm ± 1.5 mm
Covering Width ~ 195 mm ± 2.0 mm
*Minimum roof pitch ~ 30º
Number of tiles per m2 ~ 16
Weight per tile ~ 2.5 kg
Weight per m2 (min.) ~ 41.3 kg
Battens required per per m2 (min) ~ 3.4
Batten size (mm) ~ 50 x 25

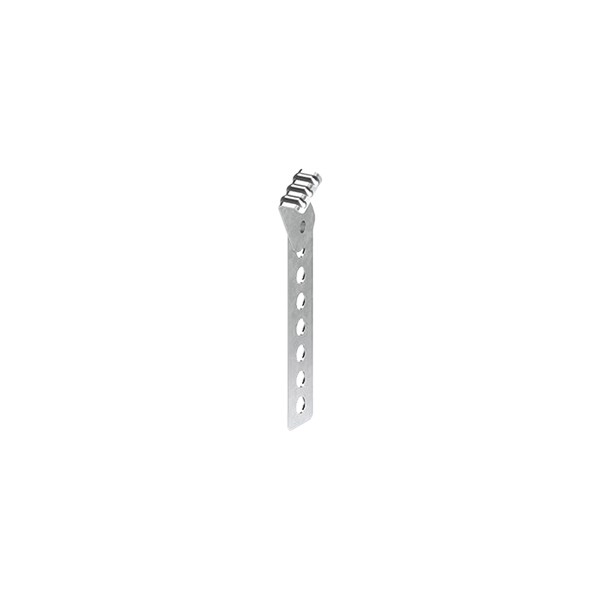

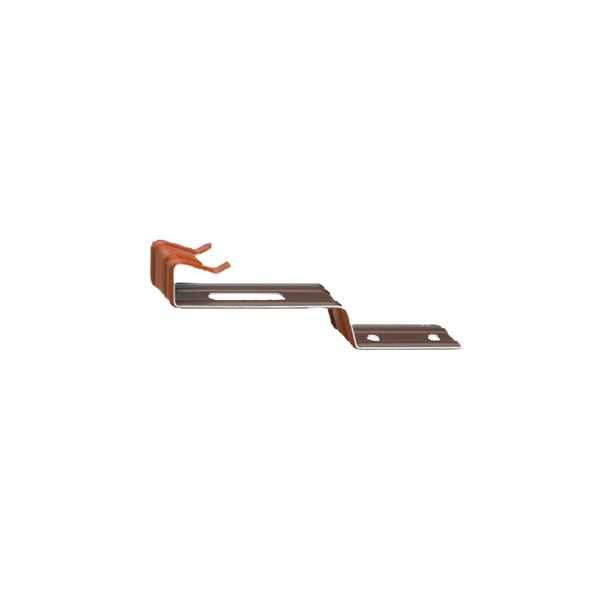

All tiles must be fixed
(Contact Crest for FOC specific BS 5534 fixing specification)
