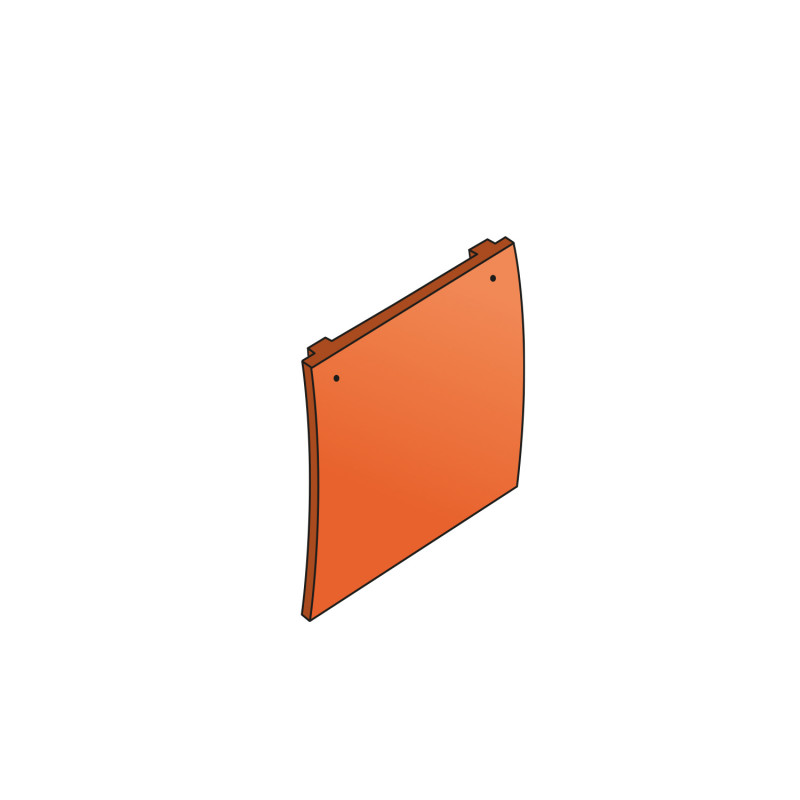

Plain Tile

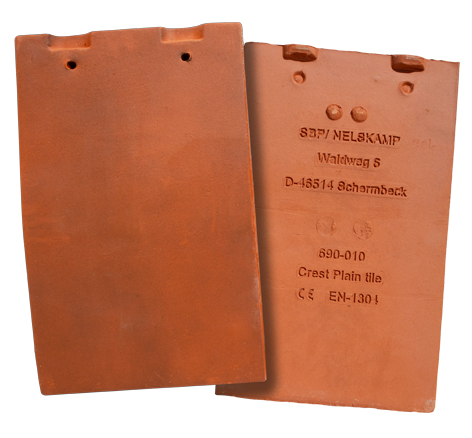

The Crest Schermbecker single camber is a non-interlocking clay plain tile that is available in a range of colours.
This traditional shaped roof tile is manufactured to the highest standard using only the best raw materials available.
The most modern technologies in production facilities ensure that this profile is precise in its shape enabling the roof tilers to provide a high-quality finished roof.

Range of Colours

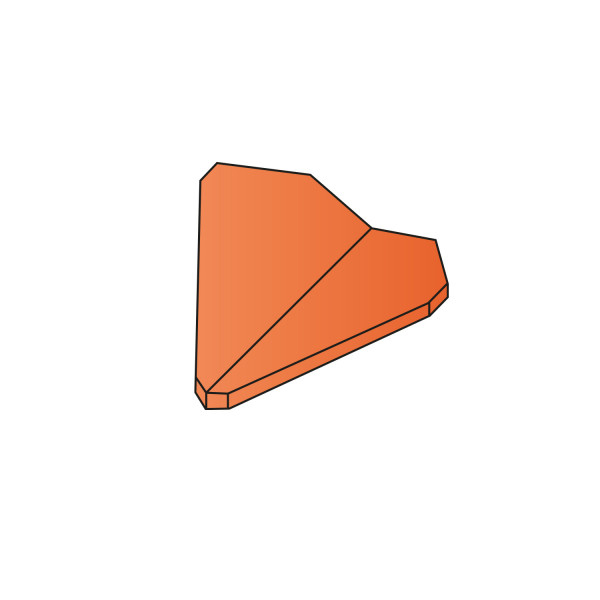

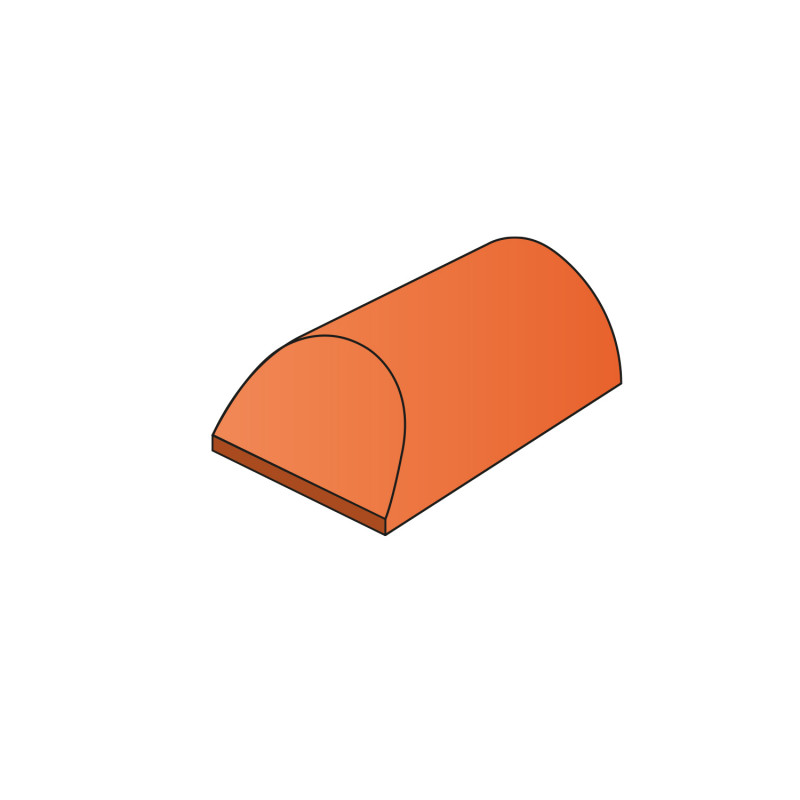

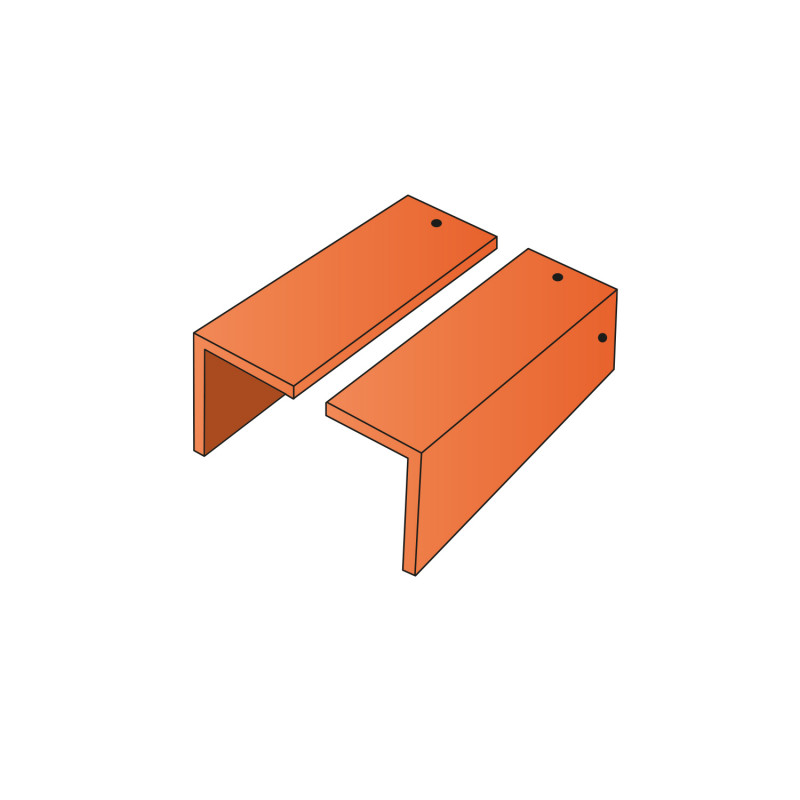

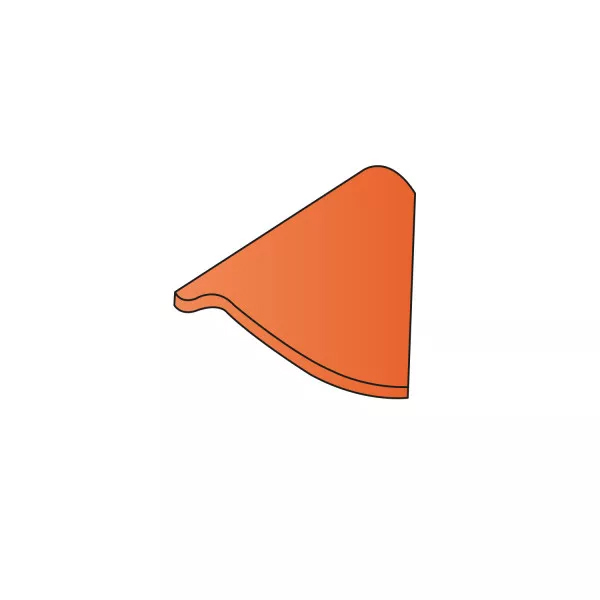

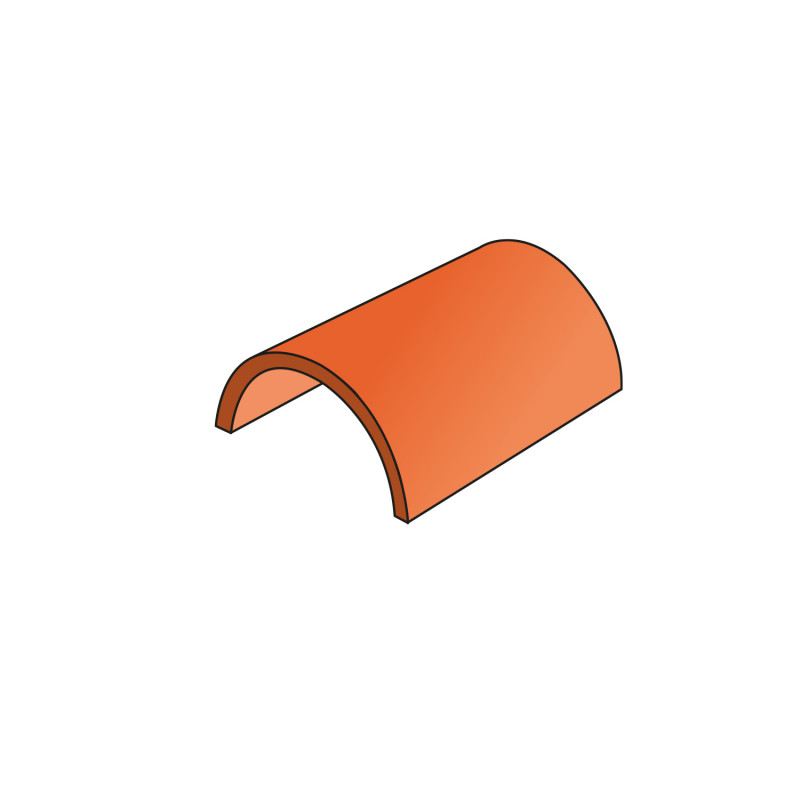

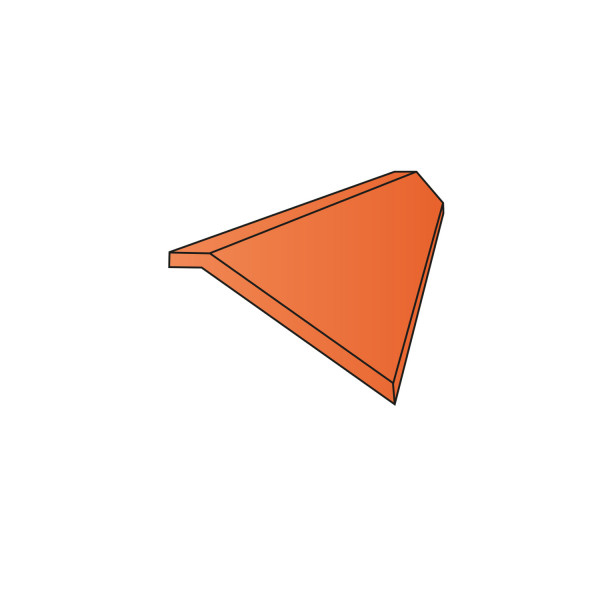

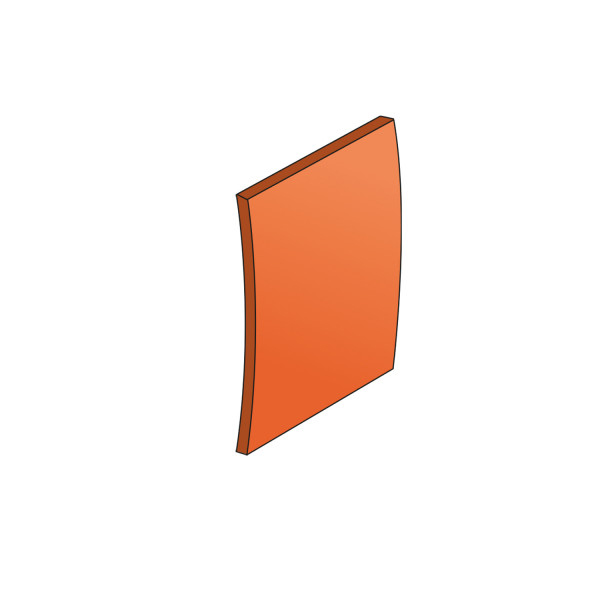

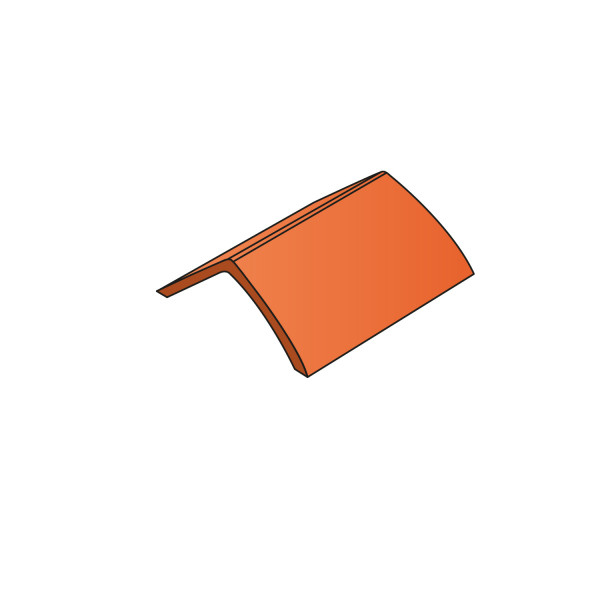

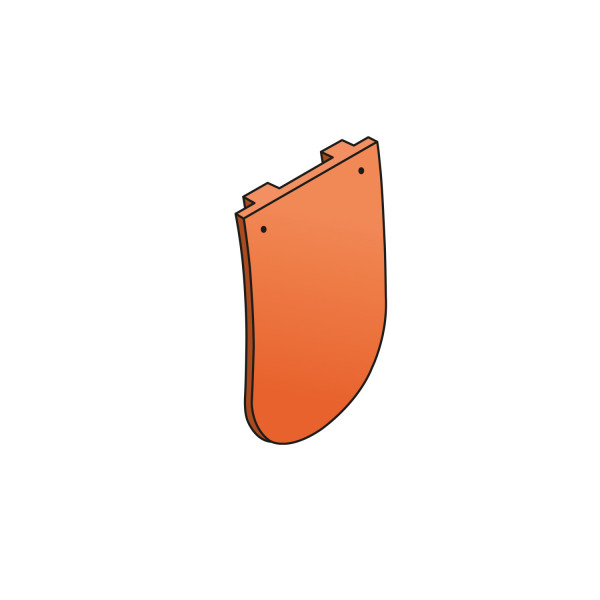

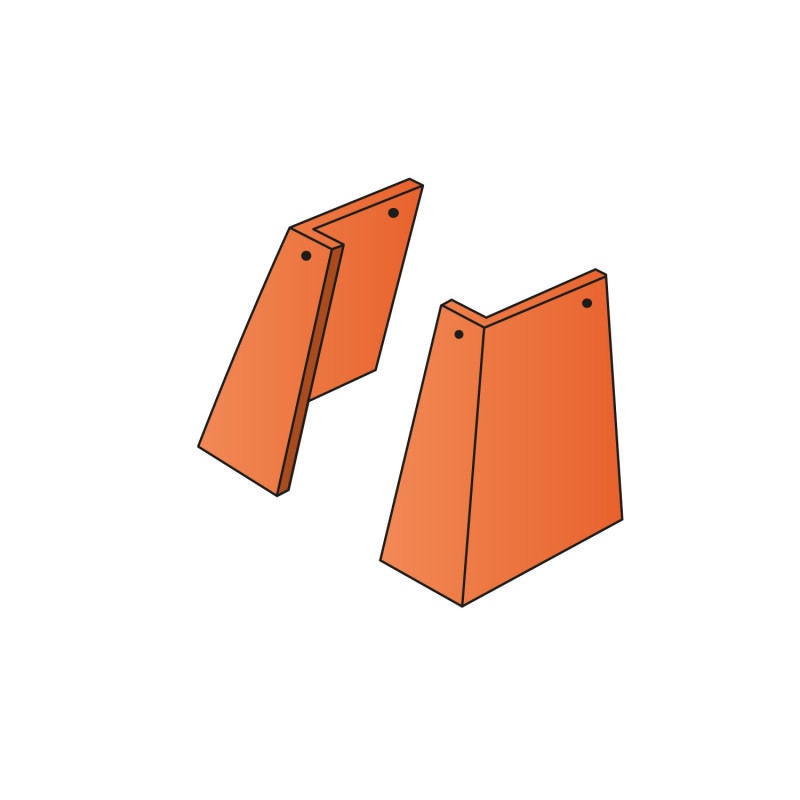

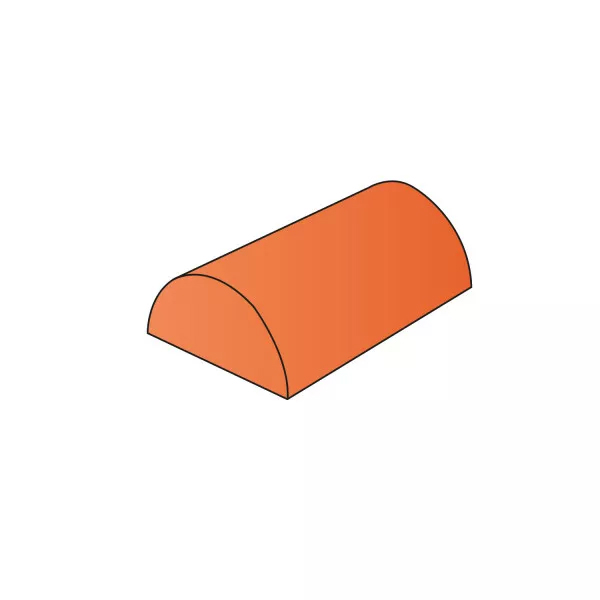

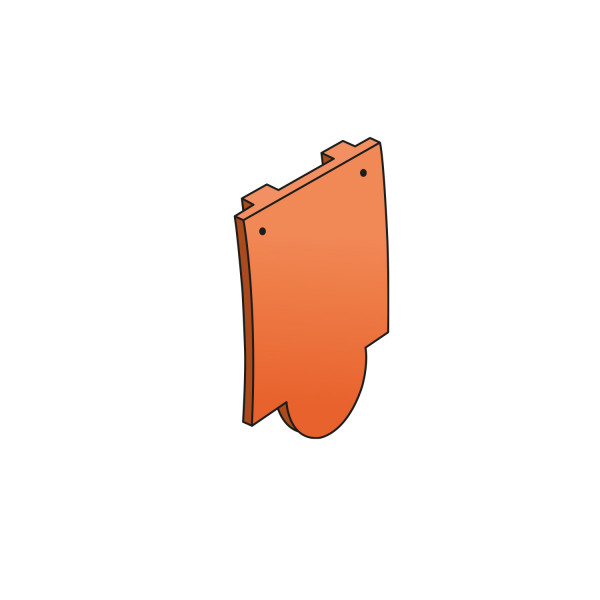

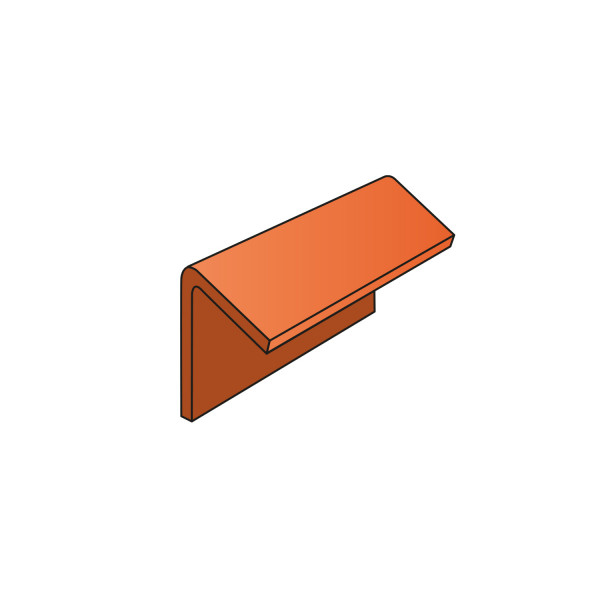

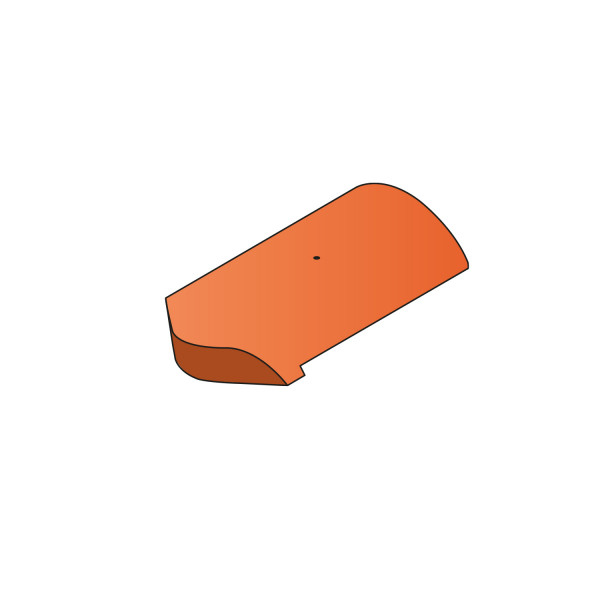

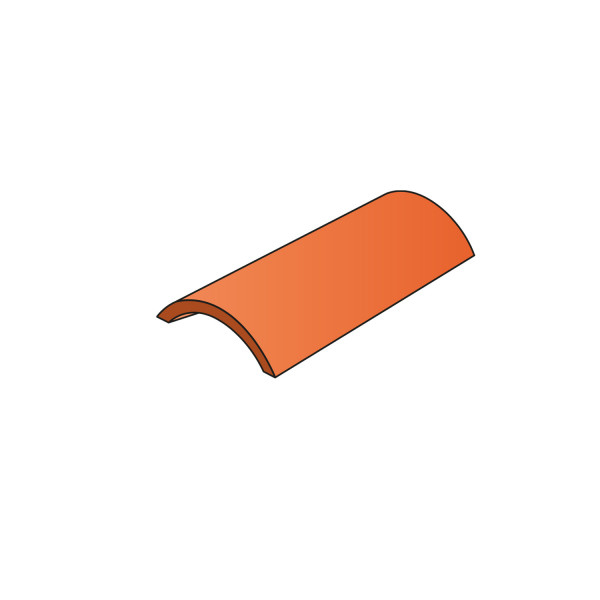

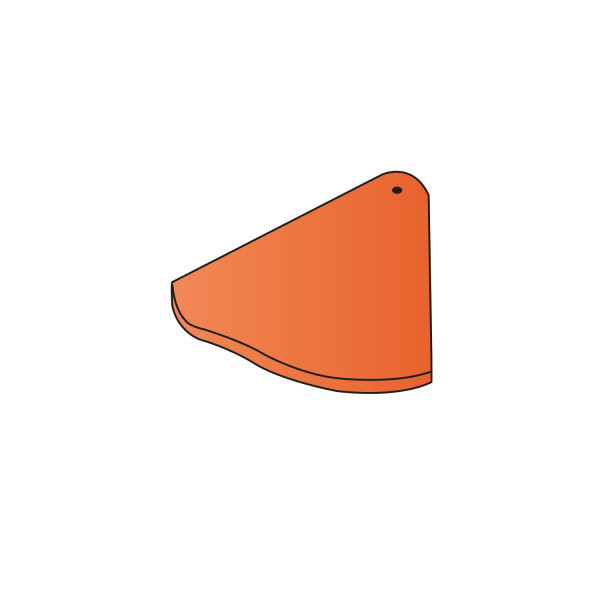

The Plain Tiles are available in an attractive range of colours and finishes with a comprehensive range of fittings including Bonnets, Valleys and Third Round Ridges Tiles.

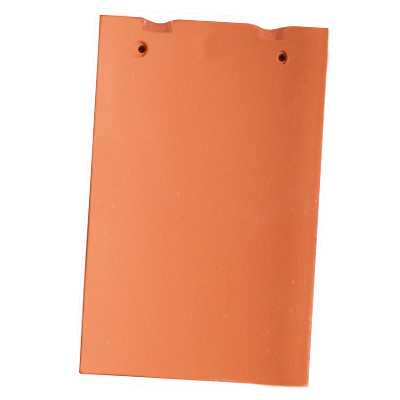

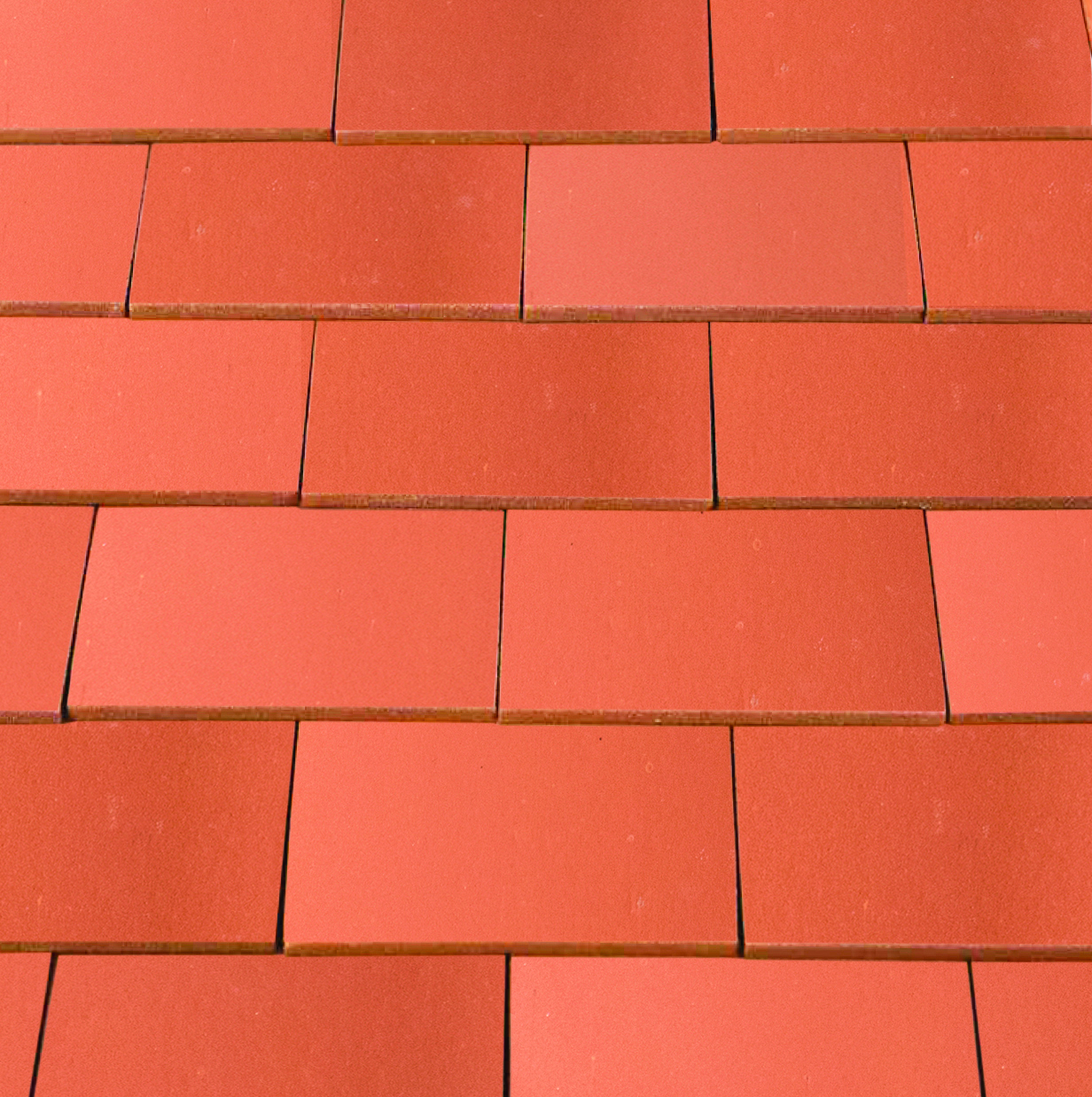

Plain Tile Natural Red
Plain Tile Natural Red

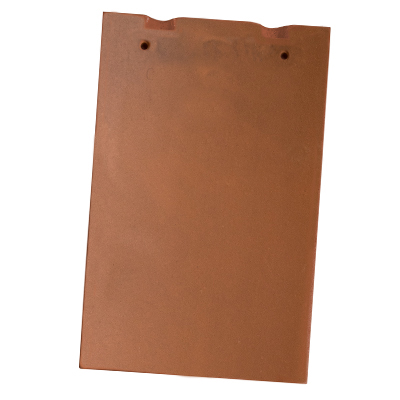

Plain Tile Toscana
Plain Tile Toscana

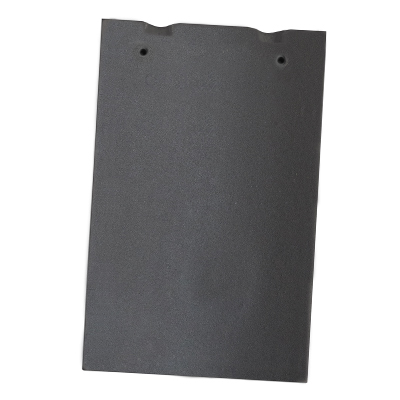

Plain Tile Matt Black
Plain Tile Matt Black

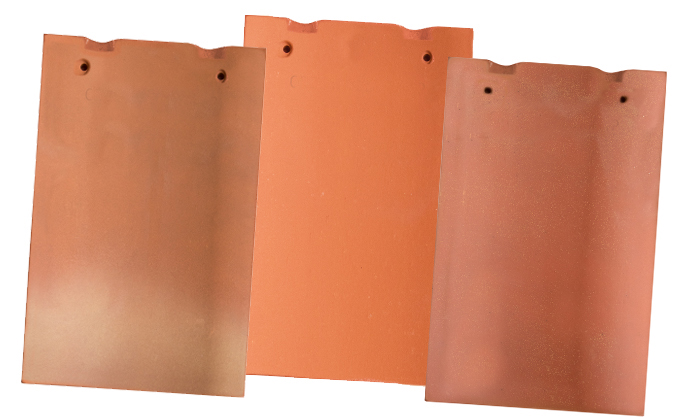

Plain Tile Classic
Plain Tile Classic
'Classic is a mix of different colours & finishes'

Features

  • High-quality clay
  • Minimum roof pitch 30°
  • Long Term Durability
  • Eco-friendly
  • Low maintenance
  • Quick, easy & secure installation

Technical Data

Length – 265mm
Width – 165mm
Minimum pitch* – 30°
Maximum pitch – 90°
Minimum headlap – 65mm (roof) / 35mm (vertical)
Maximum gauge – 100mm (roof) / 115mm (vertical)
Cover width – 165mm (nominal)
Tile thickness – 11mm (nominal)
Covering capacity – 60 tiles/m2 at 100mm gauge (roof)
(net) 53 tiles/m2 at 115mm gauge (vertical)
Weight of tiling – 64kg/m2 (0.63 kN/m2) at 100mm gauge (roof)
(approx.) 56kg/m2 (0.55 kN/m2) at 115mm gauge (vertical)
Battens required – 10.0 lin.m/m2 at 100mm gauge (roof)
(net) 8.7 lin.m/m2 at 115mm gauge (vertical)
Batten size – 38 x 25mm for rafters/supports not exceeding 600mm
recommended centres (fixed to BS 5534)
Tile nails – 38mm x 2.65mm
Authority – BS EN 1304

Downloads

For further information, data cards, CAD drawings, downloads and tile samples please click the RDUK link below.

https://roofingdistributionuk.com
DownloadClay Plain Tile   [ 1.6 Mb ]
